نظرية المخططات

مخطط في 6 رؤوس و7 حواف.

في الرياضيات وعلم الحاسوب، نظرية المخططات (graph theory)، هي دراسة المخططات، وهي البنى الرياضية المستخدمة لنموذج العلاقات الزوجية بين الأدوات. يتكون المخطط في هذا السياق من الرؤوس (وتسمى أيضاً العقد أو النقاط) والتي ترتبط بواسطة الحواف (وتسمى أيضاً الأقواس أو الروابط أو الخطوط). يتم التمييز بين المخططات غير الموجهة، حيث تربط الحواف بين رأسين بشكل متماثل، والمخططات الموجهة، حيث تربط الحواف بين رأسين بشكل غير متماثل. المخططات هي واحدة من المواضيع الرئيسية للدراسة في الرياضيات المتقطعة.

التعريف والتسمية

المقالة الرئيسية: مخطط (رياضيات متقطعة)

A graph consists of vertices connected by edges. A graph is occasionally called:

• An undirected graph (top left), distinguishing it from a directed graph that has an arrow on each edge (top right). Undirected and directed graphs can be merged into a mixed graph (bottom left); and
• A simple graph, distinguishing it from a multigraph (bottom right).

Graph theory is a branch of mathematics that studies graphs, mathematical structures for modelling pairwise relations between objects. It is part of discrete mathematics, often considered part of combinatorics, although it is a stand-alone field due to its great growth and distinct from other fields, having its own kind of problems. The term "graph" was introduced by James Joseph Sylvester in a paper published in 1878 in Nature, where he drew an analogy between "quantic invariants" and "co-variants" of algebra and molecular diagrams.

The definition of a graph can vary, but one can understand that a graph is a structure consisting of vertices (also called nodes or points) and edges (also called arcs, links, or lines). Two vertices of an edge are called the endpoints. Occasionally, a graph is called an undirected graph, to distinguish it from a directed graph. A directed graph is a graph where each edge has an assignment direction known as orientation, designated with an arrow. A mixed graph can have edges that may be directed, and some may be undirected. A graph can also be called a simple graph, to distinguish it from a multigraph. A multigraph allows many edges to have the same pair of endpoints, and it also allows an edge to connect a vertex to itself, known as a loop. A graph can have its edges assigned a number, which is known as the weight. Such a graph is called a weighted graph.

التاريخ

Map of Königsberg from 1651 showing the layout of the seven bridges, highlighting the Pregel River (in blue) and the bridges (in lime). The problem lays the foundation of both graph theory and topology.

In 1736, Leonhard Euler published a paper titled Solutio Problematis ad Geometriam Situs Pertinentis on the Seven Bridges of Königsberg, which is regarded as the first paper in the history of graph theory. Euler's paper and Alexandre-Théophile Vandermonde's 1771 Remarques sur les Problèmes de Situation paper on the knight's tour carried on with the analysis situs, initiated by Gottfried Wilhelm Leibniz. Euler's characteristic relating the number of edges, vertices, and faces of a convex polyhedron was studied and generalized by Augustin-Louis Cauchy and Simon Antoine Jean L'Huilier, and represents the beginning of the branch of mathematics known as topology.

More than one century after Euler's paper on the bridges of Königsberg, and while Johann Benedict Listing was introducing the concept of topology, Arthur Cayley was led by an interest in particular analytical forms arising from differential calculus to study a particular class of graphs, the trees. This study had many implications for theoretical chemistry. The techniques he used mainly concern the enumeration of graphs with particular properties. Enumerative graph theory then arose from the results of Cayley and the fundamental results published by Pólya between 1935 and 1937. These were generalized by Nicolaas Govert de Bruijn in 1959. Cayley linked his results on trees with contemporary studies of chemical composition. The fusion of ideas from mathematics with those from chemistry began what has become part of the standard terminology of graph theory.

The autonomous development of topology from 1860 to 1930 fertilized graph theory back through the works of Camille Jordan, Kazimierz Kuratowski, and Hassler Whitney. Another important factor in the common development of graph theory and topology came from the use of the techniques of modern algebra. The first example of such a use comes from the work of the physicist Gustav Kirchhoff, who published in 1845 his Kirchhoff's circuit laws for calculating the voltage and current in electric circuits.

The first textbook on graph theory was written by Dénes Kőnig, and published in 1936. Another book by Frank Harary, published in 1969, was "considered the world over to be the definitive textbook on the subject", and enabled mathematicians, chemists, electrical engineers and social scientists to talk to each other. Harary donated all of the royalties to fund the Pólya Prize.

One of the most famous problems in graph theory is the four color problem: Is it true that any map drawn in the plane may have its regions colored with four colors, in such a way that any two regions having a common border have different colors? This problem was first posed by Francis Guthrie in 1852, and its first written record is in a letter of Augustus De Morgan addressed to William Rowan Hamilton the same year. Many incorrect proofs have been proposed, including those by Augustin Cayley, Alfred Kempe, and others. The study and the generalization of this problem by Peter Tait, Percy John Heawood, Frank P. Ramsey and Hadwiger led to the study of the colorings of the graphs embedded on surfaces with arbitrary genus. Tait's reformulation generated a new class of problems, the factorization problems, particularly studied by Petersen and Dénes Kőnig. The works of Ramsey on colorations, and more specially, the results obtained by Pál Turán in 1941, were at the origin of another branch of graph theory, known as extremal graph theory.

The four-color problem remained unsolved for more than a century. In 1969, Heinrich Heesch published a method for solving the problem using computers. A computer-aided proof produced in 1976 by Kenneth Appel and Wolfgang Haken makes fundamental use of the notion of "discharging" developed by Heesch. The proof involved checking the properties of 1,936 configurations by computer, and was not fully accepted at the time due to its complexity. A simpler proof considering only 633 configurations was given twenty years later by Robertson, Seymour, Sanders and Thomas.

The introduction of probabilistic methods in graph theory, especially in the study of Erdős and Rényi of the asymptotic probability of graph connectivity, gave rise to yet another branch, known as random graph theory, which has been a fruitful source of graph-theoretic results.

المجالات الفرعية

نظرية المخططات الطبولوجية

المقالة الرئيسية: نظرية المخططات الطبولوجية

انظر أيضاً: تصنيف:نظرية المخططات الطبولوجية

تتناول نظرية المخططات الطبولوجية دراسة المخططات المتعلقة بالطوبولوجيا. وتشمل المواضيع، إلى جانب الرسوم التوضيحية المرفقة من الأعلى إلى الأسفل، ما يلي:

• تضمين مخطط في السطح، مع مثال على مخطط هيوود في التارة؛
• تضمين صفحة-1 من المخطط الماسي؛
• العدد المتقاطع، مع مثال على مخطط ثنائي كامل مكون من أربعة وسبعة رؤوس $K_{4,7}$، به 18 تقاطعاً (بالنقاط الحمراء)؛ و
• تلوين الخريطة، باستخدام مبرهنة الألوان الأربعة لتلوين كل ولاية أمريكية بشكل مختلف، متجاهلة البحيرات والمحيطات.

تُعنى نظرية المخططات الطبولوجية بدراسة المخططات كفضاء طبولوجي. المخطط في الطبولوجيا هو مجموعة من المبسطات التي تسمى المركب البسيط أحادي البعد. يدرس هذا المجال الفرعي تضمين المخطط في السطح والتضمين بدون روابط، المخططات الصغرى، العدد المتقاطع، تلوين الخريطة، ومخططات الجهد.

إن تضمين المخطط في السطح هو تمثيل مخطط ترتبط فيه النقاط بالرؤوس والأقواس البسيطة ذات الحواف في السطح. ترتبط نقاط النهاية بالحافة، والنقاط برؤوس النهاية. لا تتضمن أي أقواس نقاطاً مرتبطة بالرؤوس الأخرى، ولا يتقاطع قوسان أبداً عند نقطة داخلية لأي من القوسين. يمكن تعميم تضمين المخطط في التضمين بدون روابط، حيث لا تُربط دورتين من المخطط في الفضاء الإقليدي ثلاثي الأبعاد، وكتاب، مجموعة من المستويات النصفية جميعها لها نفس خط حدودها.

يقال إن المخطط يكون صغيراً إذا كان من الممكن تشكيله من مخطط آخر عن طريق حذف الرؤوس والحواف، وبواسطة تقلص الحافة. أقرب نتيجة لنظرية المخطط الصغير هي من مبرهنة ڤاگنر، التي تنص على أن المخطط المحدود يكون مستوياً إذا وفقط إذا كان صغيره لا يتضمن رسم بياني كامل على خمس رؤوس $K_5$ ولا مخطط خدمات. النتيجة ذات الصلة هي نظرية روبرتسون-سيمور، مما يعني وجود مخطط صغير محظور لكل خاصية من خصائص المخططات المحفوظة عن طريق الحذف وتقلصات الحواف.

يوضح عدد التقاطع الحد الأدنى لعدد حواف التقاطع في المخطط. نشأت هذه الدراسة من عالم الرياضيات المجري پال توران الذي طلب خطة مصنع تقلل من عدد المعابر بين المسارات التي تربط أفران الطوب بمواقع التخزين. يمكن إضفاء الطابع الرسمي على هذه المشكلة بالسؤال عن رقم التقاطع لمخطط ثنائي كامل.

تلوين المخطط هي مهمة منهجية لتصنيف عناصر المهطط، والتي تسمى تقليدياً ألوان. في التلوين، لا يوجد عنصران متجاوران لهما نفس اللون. ويتطلب الحد الأدنى لعدد الألوان، وهو ما يعرف بالعدد اللوني. مبرهنة الألوان الأربعة نصت على أنه لا يلزم أكثر من أربعة ألوان لتلوين مناطق أي خريطة بحيث لا يكون لمنطقتين متجاورتين نفس اللون؛ أي أنه لا توجد منطقتان تشتركان في حدود مشتركة. هذه المبرهنة أقوى من مبرهنة الألوان الخمسة. وعلى نحو متصل، مشكلة الأرض والقمر معروفة بالمشكلة المفتوحة حالياً المتعلقة بامتداد مشكلة تلوين الخريطة المستوية، والتي يتم حلها بواسطة مبرهنة الألوان الأربعة.

مخطط الجهد هو مخطط موجه تتميز حوافه بشكل عكسي بواسطة عناصر من المجموعة. يحدد هذا المخطط بإيجاز المخطط المشتق. كما أنها طريقة شائعة لتكوين مخطط مغطي.

نظرية المخططات الجبرية

المقالة الرئيسية: نظرية المخططات الجبرية

انظر أيضاً: نظرية المخططات الطيفية and نظرية المخططات الطبولوجية

Algebraic graph theory uses group theory to study the symmetry of a graph. For example, Petersen graph is high-symmetrical, known for vertex-transitive, symmetric, distance-transitive, and distance-regular. Its automorphism group has 120 elements and symmetric group $S_5$.

Algebraic graph theory is the study of graph theory that involves major branches of algebra. Major branches of algebra that are used are linear algebra and group theory.

A study of graph theory using linear algebra is called spectral graph theory. This study focuses on adjacency matrix, a matrix that represents the graph, and its spectrum, which focuses on the characteristic polynomial, eigenvalues, and eigenvectors of the given adjacency matrix. It also focuses on the Laplacian matrix of a graph, which involves the degree matrix (a diagonal matrix that represents the degree of a vertex) and the adjacency matrix.

Group theory, particularly automorphism groups and geometric group theory, focuses on various families of graphs based on symmetry in algebraic graph theory. Such a symmetry includes symmetric graphs, vertex-transitive graphs, edge-transitive graphs, distance-transitive graphs, distance-regular graphs, and strongly regular graphs. Frucht's theorem states that every finite group is the group of symmetries of a finite undirected graph, or more strongly, there exist infinitely many non-isomorphic simple connected graphs such that the automorphism group of each of them is isomorphic to a finite group.

Algebraic graph theory also studies the algebraic invariants, chromatic polynomial, Tutte polynomial of a graph, and knot invariant. A graph invariant is a property of graphs that depends only on the abstract structure, instead of labellings or drawings of the graph. A chromatic polynomial is a polynomial that counts the number of graph colorings as a function of the number of colors. The Tutte polynomial is a two-variable polynomial on graph connectivity.

نظرية المخططات الهندسية

المقالة الرئيسية: نظرية المخططات الهندسية

انظر أيضاً: رسم المخطط and تصنيف:نظرية المخططات الهندسية

تدرس نظرية المخططات الهندسية مخططاً مرسوماً بحواف منحنية بخط مستقيم أو مستمر مع خصائص هندسية بشكل اندماجي. ومن خلال هذه الرسوم التوضيحية، تدرس نظرية المخططات الهندسية:

• المخطط الإقليدي كما في الشجرة الممتدة الإقليدية الدنيا (أعلى اليسار)؛
• مخطط متعدد السطوح مع مثال على مخطط ثنائي السطوح لمجسم ثنائي السطوح منتظم (أعلى اليمين)؛
• مخطط تقاطع للمجموعات الهندسية مثل مخطط العملة مع رص الدوائر (أسفل اليسار)؛ و
• هندسة الوقوع كما في مخطط هيوود هي مخطط لـِڤي لمستوى فانو (أسفل اليمين).

تركز نظرية المخططات الهندسية على الخصائص التجميعية والهندسية للمخطط المرسوم في مستوى ذو خطوط مستقيمة أو حواف منحنية مستمرة في الفضاء الإقليدي. كجزء من الهندسة المتقطعة والهندسة الحسابية، تدرس نظرية المخططات الهندسية المخططات المستوية، العلاقة بكثيرات الجوانب المحدبة ذات الأبعاد الأعلى، تقاطع مجموعات هندسية الشكل، وغيرها من المجالات الفرعية للهندسة؛ مثل هندسة الوقوع والهندسة الإسقاطية.

المخطط المستوي الذي تكون رؤوسه مدمجة كنقاط، وحوافه قطع مستقيمة غير متقاطعة في المستوى الإقليدي يسمى المخطط المستوي للخط المستقيم. يمكن تمثيل أي مخطط مستوي كمخطط مستوي للخط المستقيم بواسطة مبرهنة فاري. المخطط المستوي للخط المستقيم هو حالة خاصة للمخطط الإقليدي. يسمح المخطط الإقليدي بأن يكون لحوافه طول المسافة الإقليدية بين نقاط النهاية. مفهومها هي الشجرة الممتدة الإقليدية الدنيا حول تقليل الطول الإجمالي للمقاطع للنقاط المحدودة في أي فضاء إقليدي، مشكلة هادڤيگر-نلسون عند السؤال عن الحد الأدنى لعدد مستويات التلوين بحيث لا توجد نقطتان على مسافة الوحدة من بعضها البعض لهما نفس اللون، ومسألة المسار الأقصر عند إيجاد مسار بين رأسين في مخطط يقلل مجموع القيم المخصصة لحوافه.

مخطط الرؤية (visibility graph) هو مخطط تكون رؤوسه وحوافه هي مواقع النقاط والوصلات المرئية، على التوالي. في المضلع البسيط، حيث لا تتقاطع حوافه ذاتياً ولا تحتوي على ثقوب، ترتبط رؤوس مخطط الرؤية بحواف تمثل جوانب وأقطار المضلع. تُعرف الرؤوس على أنها مواقع النقاط. المخطط متعدد السطوح (Polyhedral graph) هو مخطط غير موجه يشكل الرؤوس والحواف لمجسم متعدد السطوح محدب ثلاثي الأبعاد. ومن أجل تحقيق ذلك، يجب أن يفي مثل هذا المخطط بمتطلبات مبرهنة شتاينتز، التي تنص على أن كل متعدد سطوح محدب هو مخطط مستوي متصل بثلاثة رؤوس. يظل المخطط المستوي متصلاً عند إزالة أي من رأسيه.

مخطط التقاطع هو مخطط يرتبط فيه كل رأس بمجموعة وتكون فيه الؤروس متصلة بحواف عندما تحتوي المجموعات المقابلة على تقاطع غير فارغ. يُمثل كل رأس كمجموعة، وكل رأسين متصلين. ومن ثم، يمكن تمثيل مخطط التقاطع للمجموعات المحدودة من خلال أصغر عدد من العناصر المطلوبة، والمعروف باسم عدد التقاطع. يمكن أن يكون المخطط الناتج هندسيًا عندما تكون المجموعات عبارة عن أدوات هندسية. على سبيل المثال، مخطط تقاطع الخطوط المستقيمة في بُعد واحد هو مخطط فاصل. مخطط تقاطع أقراص الوحدة في المستوى هو مخطط قرص الوحدة. تقاطع رص الدوائر هو مخطط عملة، حيث يمثل الرأس والحافة دائرة وكل زوج من الدوائر المماسية؛ وفقاً لمبرهنة كوبى-أندريڤ-ثرستون، فإن مخططات تقاطع الدوائر غير المتقاطعة هي بالضبط المخططات المستوية. تنص مبرهنة شاينرمان على أنه يمكن تمثيل كل مخطط مستوي على أنه مخطط تقاطع المقاطع المستقيمة في المستوى .

مخطط لـِڤي (Levi graph) هو مخطط ثنائي الأجزاء يرتبط ببنية الوقوع والتكوين الإسقاطي.

من خلال التطبيق على تصور المعلومات، يؤدي ذلك إلى إنشاء منطقة فرعية أخرى من نظرية المخططات تُعرف برسم المخطط، والتي تصور تصوير المخطط. تُرسم بشكل متكرر كمخططات ربط العقدة، وتُمثل رؤوس المخطط كأقراص أو مربعات أو تسميات نصية، وتُمثل الحواف كمقاطع خطية أو خطوط متعددة أو منحنيات في المستوى الإقليدي. تتضمن العديد من التعريفات للمخططات المبنية على مقاييس الجودة رقم التقاطع، المساحة، عرض التناظر لإيجاد مشكلة تماثل مجموعة المخطط، تقليل الانحناء، الدقة الزاوية، ومعامل الميل. أدوات رسم المخططات هي رص الدوائر، مخطط التقاطع، والمرئيات الأخرى لمصفوفة الجوار.

نظرية المخططات القصوى

المقالة الرئيسية: نظرية المخططات القصوى

انظر أيضاً: نظرية المخططات القصوى

Extremal graph theory studies the maximum number of a graph's edges, known as the extremal number. The origin is from Mantel's theorem on finding the extremal number of a triangle-free graph (illustrated), which is $\lfloor n^2/4\rfloor$.

Extremal graph theory is a branch of mathematics at the intersection of extremal combinatorics and graph theory. This area studies the maximum number of a graph's edges, known as the extremal number. The subarea's milestone originated from Mantel's theorem on the extremal number of a triangle-free graph. Turán's theorem extended Mantel's theorem for any undirected graph that does not have a complete subgraph of a given size. Turán's theorem is generalized by Erdős–Stone theorem, which is occasionally known as the "fundamental theorem of extremal graph theory".

Extremal graph theory also studies forbidden subgraph problem, homomorphism density, and Szemerédi regularity lemma. The forbidden subgraphs problem suggests finding the extremal number of a graph with $n$ vertices such that it does not have a subgraph that is isomorphic to the graph. A homomorphism density is a parameter that involves the graph homomorphism. The density may refer to the probability that a map from the vertices of a graph to the vertices of another one chosen uniformly at random is a graph homomorphism. Being homomorphic means there exists a mapping between two graphs that respects their structure, or equivalently, a function between the vertex sets of two graphs that maps adjacent vertices to adjacent vertices. Szemerédi's regularity lemma states that a graph can be partitioned into a bounded number of parts so that the edges between parts are $\epsilon$-regular.

نظرية المخططات العشوائية

المقالة الرئيسية: مخطط عشوائي

انظر أيضاً: تصنيف:مخططات عشوائية

The theory of random graph focuses on graphs using probabilistic method. The subarea was founded by Hungarian mathematicians Paul Erdős and Alfréd Rényi, whose modelling generates random graphs, known as Erdős–Rényi model.

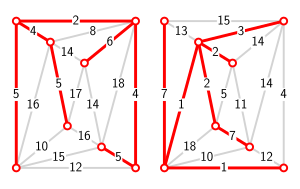

Random minimum spanning tree on the same graph but with randomized weights

This subarea studies the random tree. A tree is an undirected graph where every pair of vertices is connected by exactly one path. Therefore, a random tree is a tree that is formed by a stochastic process. Many types of random trees include:

• Uniform spanning tree is a spanning tree of a given graph in which each different tree is equally likely to be selected. Being a spanning tree means that a subgraph is a tree that includes all of the vertices of a graph. The uniform spanning tree can be generated by using the method of random simple path known as the loop-erased random walk, of taking a random walk on the given graph and erasing the cycles created by this walk.
• Branching process, a model of a population in which each individual has a random number of children
• Brownian tree, a fractal tree structure created by diffusion-limited aggregation processes
• Random binary tree is a binary tree selected at random from some probability distribution on binary trees. This includes trees formed by random insertion orders, and trees that are uniformly distributed with a given number of nodes.
• Random forest, a machine-learning classifier based on choosing random subsets of variables for each tree and using the most frequent tree output as the overall classification.
• Random minimal spanning tree is a spanning tree of a graph formed by choosing random edge weights and using the minimum spanning tree for those weights.
• Random recursive tree, increasingly labelled trees, which can be generated using a simple stochastic growth rule.
• Rapidly exploring random tree, a fractal space-filling pattern used as a data structure for searching high-dimensional spaces.
• Treap or randomized binary search tree, a data structure that uses random choices to simulate a random binary tree for non-random update sequences

تعداد المخططات

المقالة الرئيسية: تعداد المخططات

التطبيقات

The network graph formed by Wikipedia editors (edges) contributing to different Wikipedia language versions (vertices) during one month in summer 2013

Graphs can be used to model many types of relations and processes in physical, biological, social and information systems. Many practical problems can be represented by graphs. Emphasizing their application to real-world systems, the term network is sometimes defined to mean a graph in which attributes (e.g. names) are associated with the vertices and edges, and the subject that expresses and understands real-world systems as a network is called network science.

علم الحاسوب

Within computer science, 'causal' and 'non-causal' linked structures are graphs that are used to represent networks of communication, data organization, computational devices, the flow of computation, etc. For instance, the link structure of a website can be represented by a directed graph, in which the vertices (nodes) represent web pages and directed edges represent links from one page to another. A similar approach can be taken to problems in social media, travel, biology, computer chip design, mapping the progression of neuro-degenerative diseases, and many other fields. The development of algorithms to handle graphs is therefore of major interest in computer science. The transformation of graphs is often formalized and represented by graph rewrite systems. Complementary to graph transformation systems focusing on rule-based in-memory manipulation of graphs are graph databases geared towards transaction-safe, persistent storing and querying of graph-structured data.

اللسانيات

Graph-theoretic methods, in various forms, have proven particularly useful in linguistics, since natural language often lends itself well to discrete structure. Traditionally, syntax and compositional semantics follow tree-based structures, whose expressive power lies in the principle of compositionality, modeled in a hierarchical graph. More contemporary approaches such as head-driven phrase structure grammar model the syntax of natural language using typed feature structures, which are directed acyclic graphs. Within lexical semantics, especially as applied to computers, modeling word meaning is easier when a given word is understood in terms of related words; semantic networks are therefore important in computational linguistics. Still, other methods in phonology (e.g. optimality theory, which uses lattice graphs) and morphology (e.g. finite-state morphology, using finite-state transducers) are common in the analysis of language as a graph. Indeed, the usefulness of this area of mathematics to linguistics has borne organizations such as TextGraphs, as well as various 'Net' projects, such as WordNet, VerbNet, and others.

الفيزياء والكيمياء

Graph theory is also used to study molecules in chemistry and physics. In condensed matter physics, the three-dimensional structure of complicated simulated atomic structures can be studied quantitatively by gathering statistics on graph-theoretic properties related to the topology of the atoms. Also, "the Feynman graphs and rules of calculation summarize quantum field theory in a form in close contact with the experimental numbers one wants to understand." In chemistry a graph makes a natural model for a molecule, where vertices represent atoms and edges bonds. This approach is especially used in computer processing of molecular structures, ranging from chemical editors to database searching. In statistical physics, graphs can represent local connections between interacting parts of a system, as well as the dynamics of a physical process on such systems. Similarly, in computational neuroscience graphs can be used to represent functional connections between brain areas that interact to give rise to various cognitive processes, where the vertices represent different areas of the brain and the edges represent the connections between those areas. Graph theory plays an important role in electrical modeling of electrical networks, here, weights are associated with resistance of the wire segments to obtain electrical properties of network structures. Graphs are also used to represent the micro-scale channels of porous media, in which the vertices represent the pores and the edges represent the smaller channels connecting the pores. Chemical graph theory uses the molecular graph as a means to model molecules. Graphs and networks are excellent models to study and understand phase transitions and critical phenomena. Removal of nodes or edges leads to a critical transition where the network breaks into small clusters which is studied as a phase transition. This breakdown is studied via percolation theory.

العلوم الاجتماعية

ملف:Moreno Sociogram 2nd Grade.svg

Graph theory in sociology: Moreno Sociogram (1953).

Graph theory is also widely used in sociology as a way, for example, to measure actors' prestige or to explore rumor spreading, notably through the use of social network analysis software. Under the umbrella of social networks are many different types of graphs. Acquaintanceship and friendship graphs describe whether people know each other. Influence graphs model whether certain people can influence the behavior of others. Finally, collaboration graphs model whether two people work together in a particular way, such as acting in a movie together.

علم الأحياء وعلم البيئة

Likewise, graph theory is useful in biology and conservation efforts where a vertex can represent regions where certain species exist (or inhabit) and the edges represent migration paths or movement between the regions. This information is important when looking at breeding patterns or tracking the spread of disease, parasites or how changes to the movement can affect other species.

Graphs are also commonly used in molecular biology and genomics to model and analyze datasets with complex relationships. For example, graph-based methods are often used to 'cluster' cells together into cell-types in single-cell transcriptome analysis. Another use is to model genes or proteins in a pathway and study the relationships between them, such as metabolic pathways and gene regulatory networks. Evolutionary trees, ecological networks, and hierarchical clustering of gene expression patterns are also represented as graph structures.

Graph theory is also used in connectomics; nervous systems can be seen as a graph, where the nodes are neurons and the edges are the connections between them.

مواضيع أخرى

A graph structure can be extended by assigning a weight to each edge of the graph. Graphs with weights, or weighted graphs, are used to represent structures in which pairwise connections have some numerical values. For example, if a graph represents a road network, the weights could represent the length of each road. There may be several weights associated with each edge, including distance (as in the previous example), travel time, or monetary cost. Such weighted graphs are commonly used to program GPS's, and travel-planning search engines that compare flight times and costs.

التمثيلات

A graph is an abstraction of relationships that emerge in nature; hence, it cannot be coupled to a certain representation. The way it is represented depends on the degree of convenience such representation provides for a certain application. The most common representations are the visual, in which, usually, vertices are drawn and connected by edges, and the tabular, in which rows of a table provide information about the relationships between the vertices within the graph.

المرئي: رسم المخطط

المقالة الرئيسية: رسم المخطط

Graphs are usually represented visually by drawing a point or circle for every vertex, and drawing a line between two vertices if they are connected by an edge. If the graph is directed, the direction is indicated by drawing an arrow. If the graph is weighted, the weight is added on the arrow.

A graph drawing should not be confused with the graph itself (the abstract, non-visual structure) as there are several ways to structure the graph drawing. All that matters is which vertices are connected to which others by how many edges and not the exact layout. In practice, it is often difficult to decide if two drawings represent the same graph. Depending on the problem domain some layouts may be better suited and easier to understand than others.

The pioneering work of W. T. Tutte was very influential on the subject of graph drawing. Among other achievements, he introduced the use of linear algebraic methods to obtain graph drawings.

Graph drawing also can be said to encompass problems that deal with the crossing number and its various generalizations. The crossing number of a graph is the minimum number of intersections between edges that a drawing of the graph in the plane must contain. For a planar graph, the crossing number is zero by definition. Drawings on surfaces other than the plane are also studied.

There are other techniques to visualize a graph away from vertices and edges, including circle packings, intersection graph, and other visualizations of the adjacency matrix.

الجدولي: بنى بيانات المخطط

المقالة الرئيسية: مخطط (نوع البيانات المجردة)

The tabular representation lends itself well to computational applications. There are different ways to store graphs in a computer system. The data structure used depends on both the graph structure and the algorithm used for manipulating the graph. Theoretically one can distinguish between list and matrix structures but in concrete applications the best structure is often a combination of both. List structures are often preferred for sparse graphs as they have smaller memory requirements. Matrix structures on the other hand provide faster access for some applications but can consume huge amounts of memory. Implementations of sparse matrix structures that are efficient on modern parallel computer architectures are an object of current investigation.

List structures include the edge list, an array of pairs of vertices, and the adjacency list, which separately lists the neighbors of each vertex: Much like the edge list, each vertex has a list of which vertices it is adjacent to.

Matrix structures include the incidence matrix, a matrix of 0's and 1's whose rows represent vertices and whose columns represent edges, and the adjacency matrix, in which both the rows and columns are indexed by vertices. In both cases a 1 indicates two adjacent objects and a 0 indicates two non-adjacent objects. The degree matrix indicates the degree of vertices. The Laplacian matrix is a modified form of the adjacency matrix that incorporates information about the degrees of the vertices, and is useful in some calculations such as Kirchhoff's theorem on the number of spanning trees of a graph. The distance matrix, like the adjacency matrix, has both its rows and columns indexed by vertices, but rather than containing a 0 or a 1 in each cell it contains the length of a shortest path between two vertices.

المشكلات

التعداد

There is a large literature on graphical enumeration: the problem of counting graphs meeting specified conditions. Some of this work is found in Harary and Palmer (1973).

المخططات الجزئية، المخططات الجزئية المستحثة، والمخططات الصغرى

A common problem, called the subgraph isomorphism problem, is finding a fixed graph as a subgraph in a given graph. One reason to be interested in such a question is that many graph properties are hereditary for subgraphs, which means that a graph has the property if and only if all subgraphs have it too. Finding maximal subgraphs of a certain kind is often an NP-complete problem. For example:

• Finding the largest complete subgraph is called the clique problem (NP-complete).

One special case of subgraph isomorphism is the graph isomorphism problem. It asks whether two graphs are isomorphic. It is not known whether this problem is NP-complete, nor whether it can be solved in polynomial time.

A similar problem is finding induced subgraphs in a given graph. Again, some important graph properties are hereditary with respect to induced subgraphs, which means that a graph has a property if and only if all induced subgraphs also have it. Finding maximal induced subgraphs of a certain kind is also often NP-complete. For example:

• Finding the largest edgeless induced subgraph or independent set is called the independent set problem (NP-complete).

Still another such problem, the minor containment problem, is to find a fixed graph as a minor of a given graph. A minor or subcontraction of a graph is any graph obtained by taking a subgraph and contracting some (or no) edges. Many graph properties are hereditary for minors, which means that a graph has a property if and only if all minors have it too. For example, Wagner's Theorem states:

• A graph is planar if it contains as a minor neither the complete bipartite graph K_3,3 (see the Three-cottage problem) nor the complete graph K₅.

A similar problem, the subdivision containment problem, is to find a fixed graph as a subdivision of a given graph. A subdivision or homeomorphism of a graph is any graph obtained by subdividing some (or no) edges. Subdivision containment is related to graph properties such as planarity. For example, Kuratowski's Theorem states:

• A graph is planar if it contains as a subdivision neither the complete bipartite graph K_3,3 nor the complete graph K₅.

Another problem in subdivision containment is the Kelmans–Seymour conjecture:

• Every 5-vertex-connected graph that is not planar contains a subdivision of the 5-vertex complete graph K₅.

Another class of problems has to do with the extent to which various species and generalizations of graphs are determined by their point-deleted subgraphs. For example:

• The reconstruction conjecture

تلوين المخطط

المقالة الرئيسية: تلوين المخطط

Many problems and theorems in graph theory have to do with various ways of coloring graphs. Typically, one is interested in coloring a graph so that no two adjacent vertices have the same color, or with other similar restrictions. One may also consider coloring edges (possibly so that no two coincident edges are the same color), or other variations. Among the famous results and conjectures concerning graph coloring are the following:

• Four-color theorem
• Strong perfect graph theorem
• Erdős–Faber–Lovász conjecture
• Total coloring conjecture, also called Behzad's conjecture (unsolved)
• List coloring conjecture (unsolved)
• Hadwiger conjecture (graph theory) (unsolved)

الإدماج والتوحيد

Constraint modeling theories concern families of directed graphs related by a partial order. In these applications, graphs are ordered by specificity, meaning that more constrained graphs—which are more specific and thus contain a greater amount of information—are subsumed by those that are more general. Operations between graphs include evaluating the direction of a subsumption relationship between two graphs, if any, and computing graph unification. The unification of two argument graphs is defined as the most general graph (or the computation thereof) that is consistent with (i.e. contains all of the information in) the inputs, if such a graph exists; efficient unification algorithms are known.

For constraint frameworks which are strictly compositional, graph unification is the sufficient satisfiability and combination function. Well-known applications include automatic theorem proving and modeling the elaboration of linguistic structure.

مشكلات المسار

• Hamiltonian path problem
• Minimum spanning tree
• Route inspection problem (also called the "Chinese postman problem")
• Seven bridges of Königsberg
• Shortest path problem
• Steiner tree
• Three-cottage problem
• مشكلة الرحالة التاجر (NP-hard)

تدفق الشبكة

There are numerous problems arising especially from applications that have to do with various notions of flows in networks, for example:

• Max flow min cut theorem

مشكلات الرؤية

• مشكلة حارس المتحف

مشكلة التغطية

Covering problems in graphs may refer to various set cover problems on subsets of vertices/subgraphs.

• Dominating set problem is the special case of set cover problem where sets are the closed neighborhoods.
• Vertex cover problem is the special case of set cover problem where sets to cover are every edges.
• The original set cover problem, also called hitting set, can be described as a vertex cover in a hypergraph.

مشكلات التفكيك

Decomposition, defined as partitioning the edge set of a graph (with as many vertices as necessary accompanying the edges of each part of the partition), has a wide variety of questions. Often, the problem is to decompose a graph into subgraphs isomorphic to a fixed graph; for instance, decomposing a complete graph into Hamiltonian cycles. Other problems specify a family of graphs into which a given graph should be decomposed, for instance, a family of cycles, or decomposing a complete graph K_n into n − 1 specified trees having, respectively, 1, 2, 3, ..., n − 1 edges.

Some specific decomposition problems and similar problems that have been studied include:

• Arboricity, a decomposition into as few forests as possible
• Cycle double cover, a collection of cycles covering each edge exactly twice
• Edge coloring, a decomposition into as few matchings as possible
• Graph factorization, a decomposition of a regular graph into regular subgraphs of given degrees

فئات المخططات

Many problems involve characterizing the members of various classes of graphs. Some examples of such questions are below:

• Enumerating the members of a class
• Characterizing a class in terms of forbidden substructures
• Ascertaining relationships among classes (e.g. does one property of graphs imply another)
• Finding efficient algorithms to decide membership in a class
• Finding representations for members of a class

انظر أيضاًُ

• معرض المخططات المسماة
• معجم مصطلحات نظرية المخططات
• قائمة مواضيع نظرية المخططات
• قائمة المسائل غير المحلولة في نظرية المخططات
• منشورات في نظرية المخططات
• خوارزمية المخططات
• منظرو المخططات

المصادر

• Lowell W. Beineke; Bjarne Toft; and Robin J. Wilson: Milestones in Graph Theory: A Century of Progress, AMS/MAA, (SPECTRUM, v.108), ISBN 978-1-4704-6431-8 (2025).
• Beineke, Lowell W.; Wilson, Robin J. (2009). Topics in Topological Graph Theory. Cambridge University Press. ISBN 978-1-139-64368-9.
• Bender, Edward A.; Williamson, S. Gill (2010). Lists, Decisions and Graphs. With an Introduction to Probability.
• Berge, Claude (1958). Théorie des graphes et ses applications. Paris: Dunod. English edition, Wiley 1961; Methuen & Co, New York 1962; Russian, Moscow 1961; Spanish, Mexico 1962; Roumanian, Bucharest 1969; Chinese, Shanghai 1963; Second printing of the 1962 first English edition, Dover, New York 2001.
• Biggs, Norman (1993). Algebraic Graph Theory (2nd ed.). Cambridge University Press.
• Biggs, N.; Lloyd, E.; Wilson, R. (1986). Graph Theory, 1736-1936. Oxford University Press.
• Bollobas, Bela (2013). Modern Graph Theory. Springer. ISBN 978-1-4612-0619-4.
• Bollobás, Béla; Riordan, O. M. (2003). Mathematical results on scale-free random graphs in "Handbook of Graphs and Networks" (S. Bornholdt and H.G. Schuster (eds)) (1st ed.). Weinheim: Wiley VCH.
• Bollobás, B. (2001). Random Graphs (2nd ed.). Cambridge University Press. ISBN 0-521-79722-5.
• Bondy, J. A.; Murty, U. S. R. (2008). Graph Theory. Springer. ISBN 978-1-84628-969-9.
• Borgs, Christian; Chayes, Jennifer T.; Lovász, László; Sós, Vera T; Vestergombi, Katalin (2008). "Convergent sequences of dense graphs. I. Subgraph frequencies, metric properties and testing". Advances in Mathematics. 219 (6): 1801–1851. arXiv:math/0702004. doi:10.1016/j.aim.2008.07.008.
• Bounceur, Ahcene; Bezoui, Madani; Euler, Reinhardt (2019). Boundaries and Hulls of Euclidean Graphs: From Theory to Practice. CRC Press. ISBN 978-1-351-69028-7.
• A. Bretto and  A. Faisant and F.   Hennecart. Elements of Graph Theory: From Basic Concepts to Modern Developments. Ems Textbooks in Mathematics, 25, 2022 .
• Brightwell, Graham R.; Scheinerman, Edward R. (1993). "Representations of planar graphs". SIAM Journal on Discrete Mathematics. 6 (2): 214–229. doi:10.1137/0406017.
• Cauchy, A. L. (1813). "Recherche sur les polyèdres - premier mémoire". Journal de l'École Polytechnique. 9 (Cahier 16): 66–86.
• Cayley, A. (1875). "Ueber die Analytischen Figuren, welche in der Mathematik Bäume genannt werden und ihre Anwendung auf die Theorie chemischer Verbindungen". Berichte der Deutschen Chemischen Gesellschaft. 8 (2): 1056–1059. doi:10.1002/cber.18750080252.
• Cayley, A. (2009) [1890]. "On the theory of the analytical forms called trees". The Collected Mathematical Papers. Vol. 3. pp. 242–246. doi:10.1017/CBO9780511703690.046. ISBN 978-0-511-70369-0.
• Chalopin, J.; Gonçalves, D. (2009). "Every planar graph is the intersection graph of segments in the plane: Extended abstract". Proceedings of the forty-first annual ACM symposium on Theory of computing. pp. 631–638. doi:10.1145/1536414.1536500. ISBN 978-1-60558-506-2.
• Chartrand, Gary (1985). Introductory Graph Theory. Dover. ISBN 0-486-24775-9.
• Chartrand, Gary; Jordon, Heather; Vatter, Vincent; Zhang, Ping (2024). Graphs & Digraphs. CRC Press. ISBN 978-1-003-80108-5.
• Cvetković, Dragoš M.; Rowlinson, Peter (2004). "Spectral graph theory". In Beineke, Lowell W.; Wilson, Robin J. (eds.). Topics in Algebraic Graph Theory. Cambridge University Press. ISBN 978-0-521-80197-3.
• Deo, Narsingh (1974). Graph Theory with Applications to Engineering and Computer Science (PDF). Englewood, New Jersey: Prentice-Hall. ISBN 0-13-363473-6. Archived (PDF) from the original on 2019-05-17.
• Di Battista, Giuseppe; Eades, Peter; Tamassia, Roberto; Tollis, Ioannis G. (1994). "Algorithms for Drawing Graphs: an Annotated Bibliography". Computational Geometry: Theory and Applications. 4 (5): 235–282. doi:10.1016/0925-7721(94)00014-x.
• Everett, Hazel; Corneil, Derek (1995). "Negative results on characterizing visibility graphs". Computational Geometry: Theory & Applications. 5 (2): 51–63. doi:10.1016/0925-7721(95)00021-Z. MR 1353288.
• Foulds, L. R. (1992). Graph Theory Applications. Universitext. Springer. ISBN 978-1-4612-0933-1.
• Gardner, Martin (1992), Fractal Music, Hypercards, and more…Mathematical Recreations from Scientific American, W. H. Freeman and Company, p. 203
• Gibbons, Alan (1985). Algorithmic Graph Theory. Cambridge University Press.
• Godsil, Chris; Royle, Gordon F. (2001). Algebraic Graph Theory. Springer. ISBN 978-1-4613-0163-9.
• Golumbic, Martin (1980). Algorithmic Graph Theory and Perfect Graphs. Academic Press.
• Gross, J. L.; Tucker, T. W. (2012) [1987]. Topological Graph Theory. Dover Publications. ISBN 978-0-486-41741-7.
• Grünbaum, Branko (2006). "Configurations of points and lines". The Coxeter Legacy. Providence, RI: American Mathematical Society. pp. 179–225. MR 2209028.
• Hahn, Geňa; Tardif, Claude (1997). "Graph homomorphisms: structure and symmetry". In Hahn, Geňa; Sabidussi, Gert (eds.). Graph Symmetry: Algebraic Methods and Applications. Kluwer Academic Publisher. ISBN 978-0-7923-4668-5.
• Harary, Frank (1969). Graph Theory. Reading, Massachusetts: Addison-Wesley.
• Harary, Frank; Palmer, Edgar M. (1973). Graphical Enumeration. New York, New York: Academic Press.
• Kaveh, A. (2013). Optimal Analysis of Structures by Concepts of Symmetry and Regularity. Springer. ISBN 978-3-7091-1565-7.
• Kepner, Jeremy; Gilbert, John (2011). Graph Algorithms in The Language of Linear Algebra. Philadelphia, Pennsylvania: SIAM. ISBN 978-0-89871-990-1.
• L'Huillier, S.A.J. (1812–1813). "Mémoire sur la polyèdrométrie". Annales de Mathématiques. 3: 169–189.
• Lovász, László (2006). "Graph minor theory". Bulletin of the American Mathematical Society. 43 (1): 75–86. doi:10.1090/S0273-0979-05-01088-8.
• Mahadev, N. V. R.; Peled, Uri N. (1995). Threshold Graphs and Related Topics. North-Holland.
• Malitz, Seth; Papakostas, Achilleas (1994). "On the angular resolution of planar graphs". SIAM Journal on Discrete Mathematics. 7 (2): 172–183. doi:10.1137/S0895480193242931. MR 1271989.
• McDiarmid, Colin; Johnson, Theodore; Stone, Harold S. (1997). "On finding a minimum spanning tree in a network with random weights" (PDF). Random Structures & Algorithms. 10 (1–2): 187–204. doi:10.1002/(SICI)1098-2418(199701/03)10:1/2<187::AID-RSA10>3.3.CO;2-Y. MR 1611522.
• McKee, Terry A.; McMorris, F. R. (1999). Topics in Intersection Graph Theory. Society for Industrial and Applied Mathematics. ISBN 978-0-89871-430-2.
• Mohar, Bojan; Thomassen, Carsten (2001). Graphs on Surfaces. Johns Hopkins University Press. ISBN 978-0-8018-6689-0. OCLC 45102952.
• Morin, Pat (March 22, 2014). "Chapter 7: Random Binary Search Trees". Open Data Structures (in pseudocode) (PDF) (0.1Gβ ed.). pp. 145–164.
• Newman, Mark (2010). Networks: An Introduction. Oxford University Press.
• Ore, Øystein (1962). Theory of Graphs. American Mathematical Society.
• Pach, János (2018). "Geometric Graph Theory". In Toth, Csaba D.; O'Rourke, Joseph; Goodman, Jacob E. (eds.). Handbook of Discrete and Computational Geometry (3rd ed.). CRC Press.
• Pach, János; Sharir, Micha (2009). "5.5 Angular resolution and slopes". Combinatorial Geometry and Its Algorithmic Applications: The Alcalá Lectures. Mathematical Surveys and Monographs. Vol. 152. American Mathematical Society. pp. 126–127.
• Persinger, C. A. (1966). "Subsets of $n$-books in $E^3$". Pacific Journal of Mathematics. 18: 169–173. doi:10.2140/pjm.1966.18.169. MR 0195077.
• Richeson, D. (2008). Euler's Gem: The Polyhedron Formula and the Birth of Topology. Princeton University Press.
• Sedgewick, Robert; Flajolet, Philippe (2013). "Chapter 6: Trees". An Introduction to the Analysis of Algorithms (2nd ed.). Addison-Wesley. ISBN 9780133373486.
• "The George Polya Prize". Looking Back, Looking Ahead: A SIAM History (PDF). Society for Industrial and Applied Mathematics. 2002. p. 26. Archived from the original (PDF) on 2016-03-05. Retrieved 2016-03-14.
• Sylvester, James Joseph (1878). "Chemistry and Algebra". Nature. 17 (432): 284. Bibcode:1878Natur..17..284S. doi:10.1038/017284a0.
• Thurston, William (March 2002). "§13.6, Andreev's theorem and generalizations, and §13.7, Constructing patterns of circles". The Geometry and Topology of 3-manifolds. MSRI Publications. pp. 330–346. Electronic version 1.1. Retrieved 2025-12-09.
• Tutte, W. T. (2001). Graph Theory. Cambridge University Press. ISBN 978-0-521-79489-3.
• Wilson, David Bruce (1996). "Generating random spanning trees more quickly than the cover time". Proceedings of the Twenty-Eighth Annual ACM Symposium on the Theory of Computing (STOC 1996). pp. 296–303. doi:10.1145/237814.237880. ISBN 0-89791-785-5. MR 1427525.
• Zhao, Yufei (2023). Graph Theory and Additive Combinatorics: Exploring Structure and Randomness. Cambridge University Press. ISBN 978-1-009-31094-9.
• Ziegler, Günter M. (2007). "Convex polytopes: extremal constructions and $f$-vector shapes. Section 1.3: Steinitz's theorem via circle packings". In Miller, Ezra; Reiner, Victor; Sturmfels, Bernd (eds.). Geometric Combinatorics. IAS/Park City Mathematics Series. Vol. 13. American Mathematical Society. pp. 628–642. ISBN 978-0-8218-3736-8.

وصلات خارجية

• Hazewinkel, Michiel, ed. (2001), "Graph theory", Encyclopaedia of Mathematics, Kluwer Academic Publishers, ISBN 978-1556080104
• Graph theory tutorial Archived 2012-01-16 at the Wayback Machine
• A searchable database of small connected graphs
• House of Graphs — searchable database of graphs with a drawing-based search feature.
• Image gallery: graphs at the Wayback Machine (archived فبراير 6, 2006)
• Concise, annotated list of graph theory resources for researchers^[Usurped!]
• rocs — a graph theory IDE
• The Social Life of Routers — non-technical paper discussing graphs of people and computers
• Graph Theory Software — tools to teach and learn graph theory
• Online books, and library resources in your library and in other libraries about graph theory
• A list of graph algorithms Archived 2019-07-13 at the Wayback Machine with references and links to graph library implementations

كتب أونلاين

• Hartmann, Alexander K.; Weigt, Martin (2005). "Introduction to graphs". Phase Transitions in Combinatorial Optimization Problems: Basics, Algorithms and Statistical Mechanics. Wiley. pp. 25–66. arXiv:cond-mat/0602129. doi:10.1002/3527606734.ch3. ISBN 978-3-527-60673-3.
• Digraphs: Theory Algorithms and Applications 2007 by Jorgen Bang-Jensen and Gregory Gutin
• Graph Theory, by Reinhard Diestel
