سپايك (صاروخ)

سپايك Spike هو an Israeli fire-and-forget anti-tank guided missile and anti-personnel missile with a tandem-charge HEAT warhead, currently in its fourth-generation.[4] وهو من تصميم وإنتاج رفائيل للأنظمة الدفاعية المتقدمة. It is available in man-portable, vehicle-launched, and helicopter-launched variants.

سپايك
Spike
SPIKE ATGM.jpg
SPIKE ATGM Command & launcher unit (CLU) with mock-up SPIKE LR missile mounted on a tripod at Singapore Army Open House 2007
النوع صاروخ مضاد للدبابات
مكان الصنع إسرائيل
تاريخ الخدمة
في الخدمة 1981–present (Spike NLOS)

1997–الحاضر

اسُتخدم من قبل انظر المستخدمون
الحروب حرب لبنان 1982، الإنتفاضة الثانية، حرب لبنان 2006، حرب أفغانستان (2001–الآن)، حرب غزة، حرب غزة 2014، نزاع ناگورنو قرة باخ 2020
تاريخ الانتاج
المصمم رفائيل للأنظمة الدفاعية المتقدمة
صُمم Late 1970s (Spike NLOS)
المُصنع Rafael Advanced Defense Systems & EUROSPIKE GmbH (Rafael Advanced Defense Systems
Diehl Defence Rheinmetall Defence Electronics)
Unit cost $210,000 Spike NLOS[2]
صنعت • Spike NLOS: Early 1980s–present
• Spike-MR/LR/ER: 1997–present
• Spike-SR: 2012–present
عدد المصنوعات 28,500 (2017)[1]
التنويعات انظر التنويعات
المواصفات
الوزن Spike-ER from helicopter:

• Missile in canister: 34 kg (74 lb 15 oz)
• Launcher: 55 kg (121 lb 4 oz)
• Launcher + 4 missiles: 187 kg (412 lb 4 oz)

Spike-MR/LR from ground:[3]
• Missile round: 14 kg (30 lb 14 oz)
• Command & launch unit (CLU): 5 kg (11 lb 0 oz)
• Tripod: 2.8 kg (6 lb 3 oz)
• Battery: 1 kg (2 lb 3 oz)
• Thermal sight: 4 kg (8 lb 13 oz)

Spike-SR: • Missile in canister: 9.6 kg (21 lb 3 oz)

الطول • Spike-MR/LR: 1,200 mm (3 ft 11 in)
• Spike-ER: 1,670 mm (5 ft 6 in)
القطر • Spike-MR/LR: 130 mm (5.1 in)
• Spike-ER: 170 mm (6.7 in)
معدل النيران Ready to launch in 30 seconds, reload in 15 seconds
المدى الفعال • Spike-SR: 50–1,500 metres (55–1,640 yards)
• Spike-MR: 200–2,500 m (220–2,730 yd)
• Spike-LR: 200–4,000 m (220–4,370 yd)
• Spike-LR II: 200–5,500 m (220–6,010 yd)
• Spike-ER: 400–8,000 m (440–8,750 yd)
• Spike-ER II: 400–10,000 m (440–10,940 yd)
• Spike-NLOS: 600–25,000 m (660–27,340 yd)
التصويب 10× optical sight
رأس حربي Tandem-charge HEAT warhead
آلية
التفجير 		Piezoelectric trigger
المحرك Solid-propellant rocket
نظام
التوجيه 		Infrared homing – Electro Optical (CCD, Imaging Infrared (IIR) or Dual CCD/IIR), Passive CCD or dual CCD/IIR seeker

As well as engaging and destroying targets within the line-of-sight of the launcher ("fire-and-forget"), some variants of the missile are capable of making a top attack through a "fire, observe and update" method (essentially lock-on after launch);[4] the operator tracking the target, or switching to another target, optically through the trailing fiber-optic wire (or RF link in the case of the vehicle-mounted, long-range NLOS variant) while the missile is climbing to altitude after launch. This is similar to the lofted trajectory flight profile of the US FGM-148 Javelin.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

التصميم


Cut away diagram of Spike ATGM.

Frontal close-up of the SPIKE missile's Command & launch unit (CLU) with thermal-imagining sight, tripod mount and an attached dummy missile canister.


Spike is a fire-and-forget missile with lock-on before launch and automatic self-guidance. The missile is equipped with an imaging infrared seeker.

The long and extended range versions of the Spike also have the capability of "Fire, Observe and Update" operating mode (also known as Lock-on after launch (LOAL)). The missile is connected by a fiber-optical wire that is spooled out between the launch position and the missile. With this, the operator can obtain a target if it is not in the line of sight of the operator at launch, switch targets in flight, or compensate for the movement of the target if the missile is not tracking the target for some reason. Hence, the missile can be fired speculatively for a target of opportunity, or to provide observation on the other side of an obstacle. The missile has a soft launch capability – the motor firing after the missile has left the launcher – that allows for the missile to be fired from confined spaces, which is a necessity in urban warfare.


التسويق

المتغيرات


مجندة إسرائيلية تحمل حامل صواريخ سپايك طراز جيل.
  صور خارجية
صاروخ ميني سپايك الموجه المضاد للدبابات
  يمين سپايك with integral CLU
  ميني سپايك with attached Spike CLU

التنويعات

ألماز

Iran reverse-engineered Israeli Spike -MRs which were captured during the 2006 Lebanon War[5] and made a variant that goes by the name of (Iranian designation: Almaz, الماس),[6] it have been confirmed that it had been produced since 2018 and commissioned in 2021,[7] sources claim the Almaz can also be fired by missiles with videos arising from Iran showing the missile's precision.[8][9]


المستخدمون


Operators of Spike ATGM colored in dark blue.

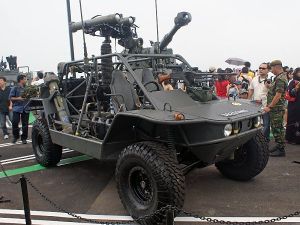

Singapore Airshow 2008, a locally developed twin-tube launcher for the Spike as mounted on a Spider Light Strike Vehicle of the Singapore Army.


  أذربيجان
اجمالي 100 صاروخ سپايك-إل أر.[10]
  تشيلي
Total 2,200 Spike-MR/LR missiles.[10]
  كولومبيا
Total 15 Spike-ER missiles.[10]
  التشيك
عدد غير معروف، تستخدم في Pandur II IFV.[11]
  إكوادور
إجمالي 244 صاروخ، استلمتها في أكتوبر 2009.[12]
  فنلندا
إجمالي 700 صاروخ، breakdown being 300 Spike-MR with the remaining 400 being Spike-ER.[10] 100 MR (PstOhj 2000) launchers plus an option for 70 more, and 18 ER (Rannikko-ohjus 2006) launchers for coastal anti-ship use.[13]
  ألمانيا
إجمالي 4,000 صواريخ سپايك-إل أرs[10], 311 LR launchers on Puma vehicles.[14]
  إسرائيل
أول انتاجها في 1997، عدد غير معروف من صواريخ سپايك (جيل)، إر أر(Gomed)، إي أر(داني) و NLOS (تامز).[15]
  إيطاليا
إجمالي 1,155 صواريخ سپايك إل أر وإي أر.[10] The Italian Army has ordered: 65 Infantry Launchers, 36 LR launchers for the Freccia IFV, 20 LR launchers for the Dardo IFV, 26 indoor and 37 outdoor training systems. The Italian Navy has ordered 6 Infantry Launchers, 2 indoor and 2 outdoor training systems. In total about 1000 missiles in 4 variants; SR, MR, LR and ER are to be procured. The initial contract is worth 120 million Euros.[13]
  هولندا
Total 2,400 Spike-MR missiles, 297 launchers.[13]
  پيرو
Total 516 Spike-LR missiles, 48 launchers.[10]
  بولندا
إجمالي 2,675 صاروخ سپايك إر آر، و264 منصة إطلاق.[10] Some will be on KTO Rosomak and Anders vehicles.[13]
  البرتغال
Total 20 Spike-MR/LR missiles.[10]
  رومانيا
Total 1,950 missiles, breakdown being 1,000 Spike-ER with the remaining 950 being Spike-LR. For use on IAR 330 SOCAT attack helicopters and MLI-84M IFVs.[10]
  سنغافورة
After Israel, Singapore became the second country to acquired Spike ATGM in 1999.[16] Total 1,000 Spike-LR missiles, with associated launchers.[10]
  سلوڤنيا
Total 75 missiles, Spike MR and LR. Some will be on Patria AMVs.[بحاجة لمصدر]
  كوريا الجنوبية
South Korea will deploy 67 Spike NLOS rockets on Baengnyeong and Yeonpyeong islands.[17]
  إسپانيا
Total 2,800 missiles, breakdown being 2,600 Spike-LR with remaining 200 being Spike-ER.[10] 236 Spike LR launchers (option for 100 more), 2,360 missiles for Spanish army, 24 Spike LR launchers/240 missiles for Spanish marines. Spike ER on Eurocopter Tiger attack helicopters (Spanish army).[13]


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

تحت التطوير

  فرنسا
Spike is a contender along with Javelin.[18][19][20]
  تركيا
Although no formal contract or deal had been concluded, an Otokar Cobra light armoured vehicle had been fitted with the Rafael Overhead Weapon Station, armed with the Spike anti-tank missile system.[21][محل شك]
